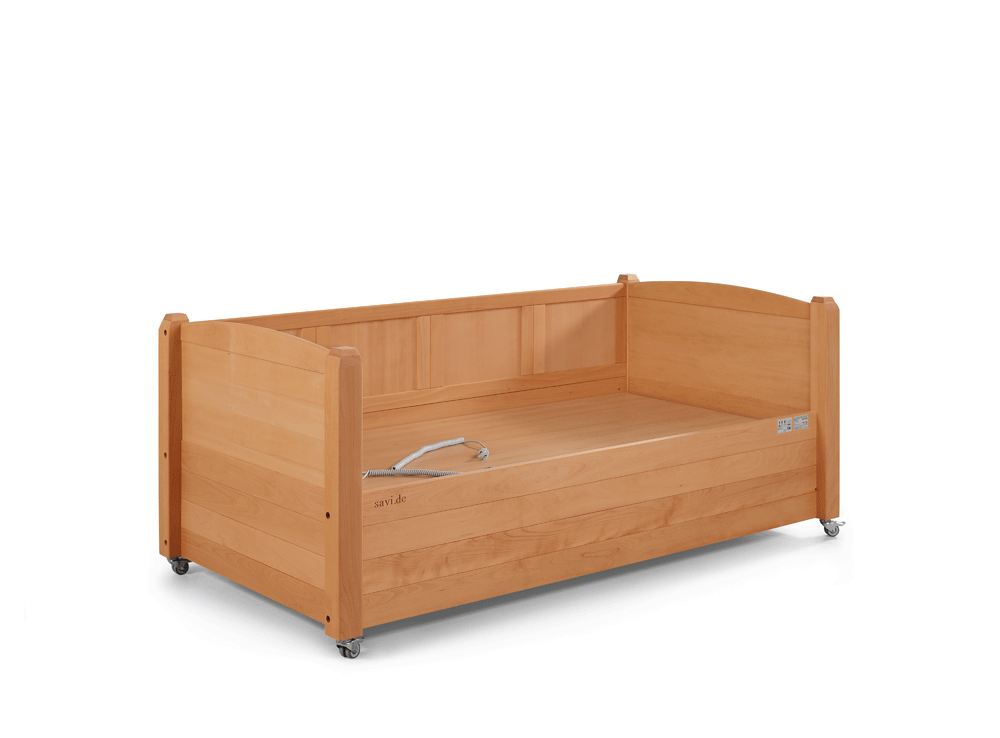

The care bed S - compatible & back-friendly!

Features of the care bed at a glance

Compatible: The care bed "S" can be combined with all slatted frames.
Adjustment option: Thanks to the adjustment option, you can care for the patient at the correct care height and without subsequent back pain. The lying height can be electrically adjusted between 40 and 80 centimetres. The head and foot sections are also adjustable.
Construction: Like all our beds, the "S" model is also extraordinarily stable and reliably manufactured.
Wetness protection: The material surface of the bed is processed in such a way that it can withstand moisture. The following classifications apply to the "S" care bed: IP54/IP66| EN 60601-2-38 and EN 1970.
Design: As the customer, you decide how the bed should look.
Extra functions: Depending on the care requirements, extras such as a foot cut-out (can be moved under with patient lifter) or a fall-out protection (by means of plug-in or comfort drop-down rails) can be added.

A care bed that fits your life!

With our beds, we want to help bring normality and routine into your everyday life. We want to make care as pleasant as possible for both the carer and the person being cared for. Therefore, it is important to us that our beds not only convince with their functions, but also with their design. We think: a care bed should look homely! And since everyone has a different furnishing style in their home, you help to design the bed. This way, the special bed is guaranteed to fit into your four walls.

The right bed size for every patient

All our beds are designed according to the living conditions of our customers. That is why we manufacture the "S" model as a single and double bed in different sizes.

Our wood tones/surface finish

Our Chorea-Huntington and special beds are available in different wood colours/surface finishes.

Make your choice...

choose model
choose size
choose equipment
choose colour accent

lying area / external dimension

100 x 200 cm / 115 x 215 cm
120 x 200 cm / 135 x 215 cm
140 x 200 cm / 155 x 215 cm

lying height (top of slatted bed base)

40 - 80 cm
low foot element

side rail

without barred sides
1 adjustable barred side
2 adjustable barred sides
1 manually removable barred side
2 manually removable barred sides
adjustable elements on head and foot element

version

load up to 150 kg
load up to 350 kg

slatted bed base

not adjustable (for load up to 350 kg)
manually adjustable (for load up to 150 kg)
electrically adjustable (for load up to 150 kg)
electrically adjustable (for load up to 350 kg)

running gear

cut out 12 cm (for patient lift)
4-castor running-gear

mattress

polyfoam RG 35
interior spring mattress
Reha-Star Plus mattress
Reha-Star II matress
cold foam mattress
heavy weight mattress (for load up to 350 kg)
incontinence cover

equipment

raising aid
bed table with electric console
bed table without console
perspex within the side rails
fixed Skai-padding
edge padding

Here you can see some special versions we've produced to customer's order.
If you have special requests too, please contact us!

38197

Care bed S/heavy duty bed in beech, mattress base 90x190 cm, manually lowerable side rails 40 cm high on both long sides, 15 cm cut-out on both sides in the front frame for the use of a patient hoist, bed gallows with raising aid, lying height 40-80 cm, electric height adjustment, height of head and foot element 84 cm

38197_2

38197_3

37671

Care bed S/heavy duty bed in beech, "lacquered" surface finish, mattress base 90x200 cm, without side rails, foot and headboard at the same height as the bed side (flush), fixed lying height top edge of mattress 45 cm, without electric lying height adjustment, fixed bed base and fixing bracket for slatted frame, foot cut-out for the front frame, bed edge padding made of lorry tarpaulin (blue) 10 cm all round

37671_2

37164

Care bed S/heavy-duty bed in beech, lying area 100x200 cm, manually lowerable side rails 40 cm high both long sides, lying height 40-80 cm, electric height adjustment of the lying surface, cut-outs of 15 cm in the foot part for the use of a patient lift, load capacity up to 150 kg, fixed Skai padding in white on the head and foot part in full height

37164_2

37164_3

37164_4

36031

Care bed S/heavy duty bed in beech, lying surface 90x200 cm, lying height 40-80 cm, height adjustment of the lying surface electrically, without side rails, foot cut-out for the front frame 12 cm, step protection for the slatted frame

34705

Care bed S/heavy duty bed in beech, surface finish "Teak", lying surface 120x200 cm, lying height 40-80 cm, height adjustment of lying surface electrically, height of head element 84 cm, without side rails, foot element at same height as bed side

34705_2

33349

Care bed S/heavy duty bed in white lacquered beech, lying surface 120x200 cm, 1 long side manually lowerable (side rail 40 cm high), 1 long side fixed (not lowerable), head section + foot section and fixed side rail with fixed upholstery in grey, lying height 40-80 cm, height adjustment of lying surface electric

33349_2

30846

Care bed S/heavy duty bed in beech, surface finish "white lacquered", lying surface 140x200 cm, manually lowerable side rails (40 cm high) on both long sides, height adjustment of lying surface electric, lying height 40-80 cm

30846_2

30846_3

30846_4

30846_5

29875

Care bed S/heavy duty bed in beech, surface finish "basalt stained", lying surface 120x200 cm, low foot section (same height as bed side), height adjustment of lying surface electrically, foot cut-out for front frame 12 cm, 1 long side rail removable upwards with U-profile to be inserted at bed side

29875_2

29875_3

22551

Care bed S/heavy duty bed in beech, lying surface 200x300 cm, head and foot section at the same height as bed side (flush), insertable grid 40 cm high and with lexana equipment, load capacity up to approx. 350 kg, entrance height 40 cm

22551_2

20205

Care bed S/heavy duty bed in lacquered beech, lying surface 200x200 cm, corner posts in dark purple, without side rails, fixed lying height approx. 36 cm, without electric lying height adjustment, electric heavy duty headboard adjustment, otherwise fixed bed base, foot cut-out on both long sides as well as foot element, fixing bracket for slatted frame

20205_2

18514

Care bed S/heavy duty bed in natural beech, lying surface 100x200 cm, without electric height adjustment, foot cut-out, lowerable side rail on one long side

18514_2

14811

Care bed S/heavy duty bed in dark walnut, lying surface 120x200 cm, foot cut-out

14811_2

13853

Care bed S/heavy duty bed in natural beech, lying surface 100x200 cm, bed gallows with erector, lowerable side rail with lexan

13853_2

13397

Care bed S/heavy duty bed in natural beech, lying surface 120x200 cm, 2-part, slightly inclined backrest, no foot element

Care bed "S" - a powerful aid in everyday care
